Carbon Fiber used for FRP Reinforcement and Strengthening of Structures

Understanding the fundamentals of carbon fiber used for FRP reinforcement is very beneficial to engineering structural reinforcement and strengthening applications. These are very high strength fibers used in fiber reinforced plastics, otherwise known as fiber reinforced polymers (FRPs). Carbon FRP, or CFRP, has a significant role in structure strengthening applications and will no doubt become more popular in its use as original, internal reinforcement.

This page describes the source of carbon based fiber, an explanation of the different qualities of fiber manufactured, the mechanical properties of each fiber type, and the difference between "carbon" and "graphite" fibers.

Sources of Carbon Fiber Used for Reinforcement

Click to enlarge

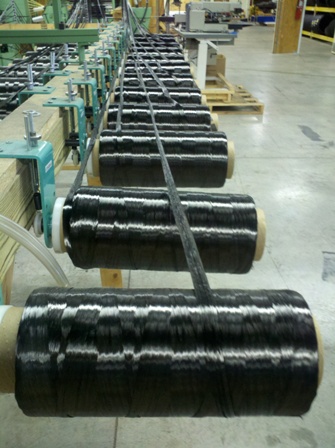

Spools of carbon fiber tows

Image credit: Richard E. Prince, PE

Carbon fiber is produced from a petroleum pitch, rayon, or polyacrylonitrile (PAN) precursor filaments. Of these, PAN-based fiber is the predominate precursor used in CFRP for structural reinforcement and strengthening due to its resulting high quality and strength characteristics.

The process of making PAN-based fibers starts with acrylonitrile, a monomer, which is a yellowish liquid with the chemical formula C3H3N. It’s basically a vinyl with a nitrile attached to it. Acrylonitrile is copolymerized with another monomer to form the polymer polyacrylonitrile (PAN) resin.

The PAN precursor is spun and stretched into acrylic fibers, orienting the polymer molecules and then oxidized at 200 °C to 300 °C. The fibers are then carbonized by heating in an inert gas atmosphere under tension to temperatures between 1,500 °C and 2,000 °C for high strength fibers and up to 2,500 °C for high modulus fibers. After carbonization, the filaments are sized and given a surface treatment to allow them to bond well to matrix resin in a future FRP. Manufacture of PAN-based fibers results in a fiber that is about 94% carbon atoms.

Hexagonal Pattern of Carbon Chains

Carbon fibers are essentially ribbons of carbon atoms oriented in the long direction of the fiber and through the manufacturing process become folded in a crimped or hairpin fashion. If you could see carbon filaments on a molecular scale, they might look like a length of scrunched up chicken wire. Chicken wire fencing has a similar hexagonal pattern that carbon atoms form when bonded together in long ribbons.

Carbon bonds in carbon fiber

Image Credit: By English Wikipedia [GFDL], via Wikimedia Commons

This spring I’ll probably have to buy a short chicken wire fence to keep the rabbits out of my daughter’s vegetable garden.

If I were to take a long length of that 20-inch (0.5 m) tall fence and fold it in half length-wise, then again so it’s the same length but it’s only one-quarter the height, then folded and scrunched it in a random way to as thin a size as, say, my wrist, that would be similar to the structure of a carbon filament 50,000 times larger than the real thing, except that the filaments use many, many layers (ribbons) of carbon that are all folded and scrunched together.

The folds do not allow the ribbons of carbon to slide past each other. These interconnected and folded carbon ribbons give carbon-based fibers their great strength.

Physical and Mechanical Properties

Physical Description

Click to enlarge

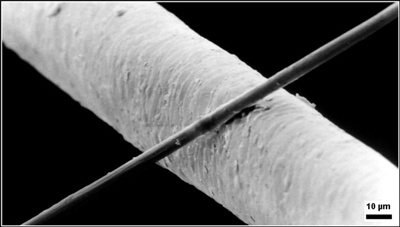

carbon fiber vs. human hair

Image Credit: By English Wikipedia [GFDL], via Wikimedia Commons

Carbon fiber made from PAN precursor have a diameter of 5 to 7 microns, about 10 times thinner than a human hair.

The filaments are produced and wound onto bobbins in groups called tows. “Tow” is a synonym in the textile industry to “roving” which is simply a parallel group of untwisted filaments. Carbon fiber tows generally contain between 3,000 and 60,000 filaments each, and some up to 100,000 filaments. The number of filaments in a tow is reported in the industry by its thousand, or K value. For example, a 12K carbon tow has 12,000 carbon filaments in a tow.

The desired characteristics of the end product determines which size carbon tow to use. A product, say a carbon textile, weaved with 24K tows will have a lighter weight and less tensile strength than a product using 48K tows. CFRPs used in structural reinforcement generally use large tows (greater than 40K) because they are generally applied to consistent and uniform surfaces (as externally applied) or formed in straight sections (as pultruded reinforcing bar or plate).

Strength and Stiffness

Carbon fiber has the widest range of strength and stiffness than all other fibers used in  FRPs. Carbon filament is grouped into categories based on its modulus of elasticity. The classification names are: low, standard, intermediate, high, and ultra-high modulus. There is no testing standard related to carbon filament classification therefor the elastic modulus values for each class vary from manufacturer to manufacturer.

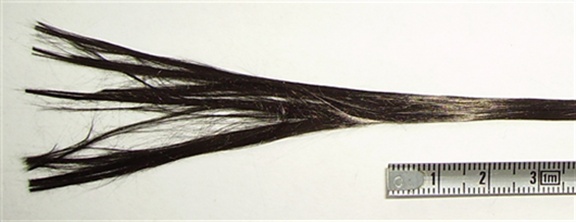

Carbon fiber tow

Image credit: By Cjp24 (Own work) [Public domain], via Wikimedia Commons

Even though the class names are generalized, they divide up how and where these fibers are generally used. Described below are the values obtained from the Japan Carbon Fiber Manufacturers Association (JCMA).

  • Low Modulus: 5,800 to 29,000 ksi (40 to 200 GPa)
  • Standard Modulus: 29,000 to 40,000 ksi (200 to 275 GPa)
  • Intermediate Modulus: 40,000 to 50,000 ksi (275 to 345 GPa)
  • High Modulus: 50,000 to 87,000 ksi (345 to 600 GPa)
  • Ultra-High Modulus: 87,000 to 140,000 ksi (600 to 965 GPa)

A table of varying carbon-based fibers is shown below.

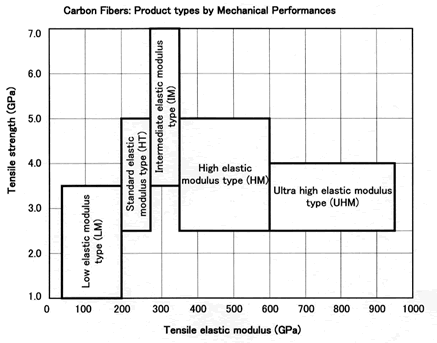

Carbon fiber strength and stiffness table

Image credit: Japan Carbon Fiber Manufacturers Association

Low Modulus fiber is generally not used for carbon fiber used for FRP reinforcement. Their low elastic modulus and low tensile strength is not worth the higher price of carbon versus other fibers such as glass.

Note that the tensile strengths of High and Ultra-High Modulus fibers are equal to or lower than the strengths of Standard and Intermediate Modulus fibers. Generally speaking, a combination of high tensile strength and high modulus is desired of carbon fiber used for FRP reinforcement and strengthening of civil structures.

Standard and Intermediate Modulus fiber is generally known as commercial or industrial grade fiber.  They have high strength and do not have the very high price tag of High and Ultra-High Modulus fibers. The popular carbon fiber used for reinforcement and strengthening of structures generally have a modulus of elasticity in the range of 32,000 to 35,000 ksi (220 to 240 GPa) and tensile strengths between 550 and 725 ksi (3,800 to 5,000 MPa). These fibers give the highest value in terms of tensile strength and stiffness versus cost.

Carbon Fiber Cost

High and ultra-high stiffness fibers are made for the aerospace industry. They are expensive and used in specialized applications such as airfoils.  At $900 USD per pound ($1,980 USD per kg) for Ultra-High Mod fiber compared to $25 USD per pound ($55 USD per kg) for Standard Modulus fiber, they are not economical for the civil infrastructure industry. (2010 prices).

  • 2013 Price Update!  Costs of standard modulus carbon fiber have gotten as low as approximately $10 USD per pound ($22 USD per kg).
  • 2023 Price Update! Standard modulus carbon fiber costs have lowered still: About $4.50 USD per pound  ($10 USD per kg).

Note: The cost of continuous carbon fiber tows varies inversely with the number of filaments per tows, that is, the cost of 3K standard modulus carbon fiber town (3,000 filaments per tow) can be over three times the cost of 100K tows.[1]

Graphite Fiber, A Special Note

There is a common misnomer regarding carbon and graphite fibers. Although both are very similar in composition, they do not have the same molecular properties. It is incorrect to use graphite fiber as an equal synonym for carbon fiber.

Graphite is a naturally occurring soft mineral. Graphite fiber can be manufactured in a process similar to carbon fiber. In the manufacture of graphite fiber, the precursor is heated to temperatures up to 2,800 °C. Graphitization, as this process is called, breaks down the interlocking nature of the carbon ribbons and forms parallel sheets, the most stable form of graphite.

Graphitization creates an even more brittle (very, very high elastic modulus) fiber that has low tensile strength. Remember, pure graphite in a flaky or powdery form is used as a lubricant (When I was in Cub Scouts, my dad showed my how to lube the wheels of my Pinewood Derby car with graphite). The molecular carbon sheets or platelets that form graphite are very slippery and slide past one another easily.

Graphite has been used as a term relating to carbon fiber in the sports industry. This means that when you’re at the store checking out the latest golf clubs that have “graphite shafts” or fly rods made with “graphite blanks” you’re really looking at products made with carbon filaments.
